Spare Parts
Acquiring spare parts
Please quote the details on the type plate(s) as well as the machine’s serial no. on every order for spare parts or accessories, or enquiries of a technical nature.
The use of spare parts supplied by others shall not be permitted. Original spare parts and accessories authorised by the manufacturer ensure safe and reliable operation. The use of other parts may invalidate the liability of the manufacturer for any consequences arising from such use.
Disposing of replaced parts
The following points should be observed before replacing or disposing of parts.
– Replaced parts, which still function, should be cleaned and stored in an orderly manner.
– Machine parts, which cannot be repaired should only be disposed of at appropriate collecting points or be collected by a scrap metal dealer.
– So-called “valuable” materials should be disposed of in a proper way, i.e. plastics, rubber, scrap metal, etc. should be recycled.
– Collect and dispose of old oil in accordance with the current regulations.

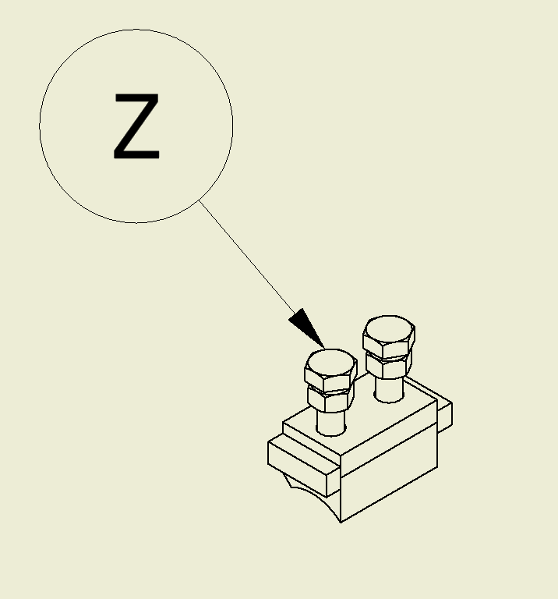

Fitting/replacing the nylon ram stop on hydraulic ram assembly
The BT2000/332-V3960 will be delivered already fitted with the Nylon stop block assembly set-up to run correctly with tolerances set.
If for any reason the Nylon stop block assembly has been lost or damaged, This item MUST be replaced IMMEDIATELY with the following specification of fitting;
SPARE PART NUMBER:
108310-800
DESCRIPTION:
HYD CYLINDER WEAR BLOCK ASSY (1 OFF)
Please note that the new replacement nylon stop may require trimming to suit.
NYLON RAM STOP FITTING INSTRUCTIONS – BT2000 BOX TIPPER
Whilst attached to the handler, being aware of your safety and the safety of others, set the Box Tipper level by eye looking from the front. Lower of the box tipper to the ground and turn off the loader and remove key to ensure that the hydraulics do not operate whilst working on the machine.
When safe to do so remove the old nylon stop block by untightening the bolts holding it in place.
Place the new replacement nylon stop block assembly in position and hand tighten.
Take a measurement between the nylon stop (curved side) stand-off on the hydraulic cylinder down the external casing on the ram.
Add a further 2mm to this distance (as tolerance) and use this measurement to trim off the nylon stop and then tighten the retaining bolts to secure.
Cut any excess material from curved side only if required. This cut side will fit towards the cylinder casing body radius.
If you are unsure of these instructions, please do not hesitate to contact us for assistance.
REMEMBER: Safety first. Never work under a suspended load and always lower the rotator to the ground before making any adjustments or alterations.

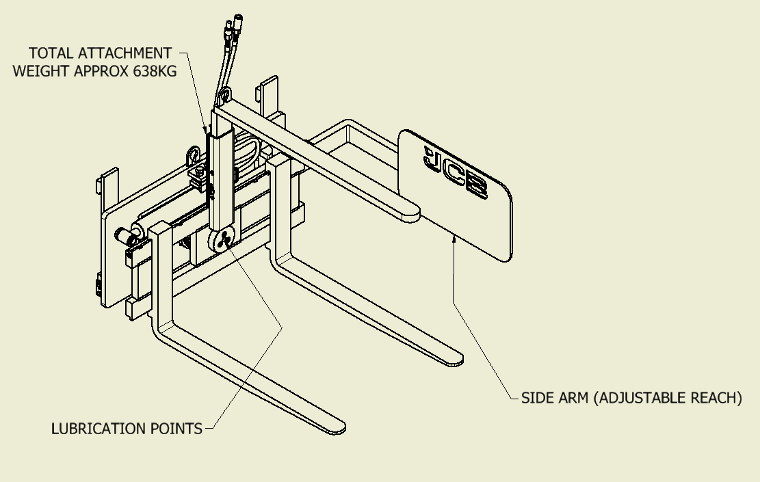

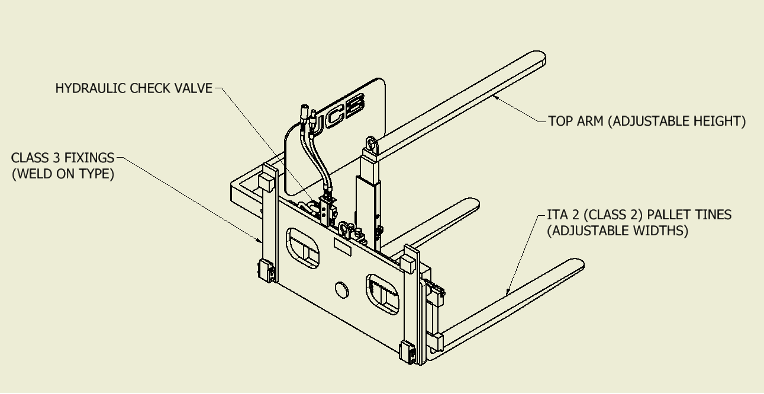

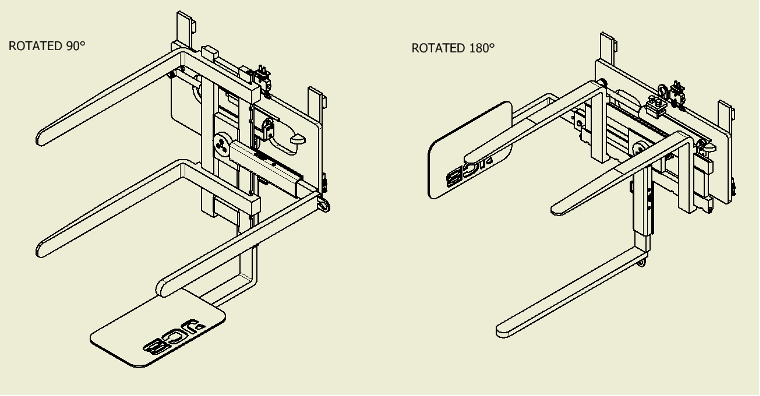

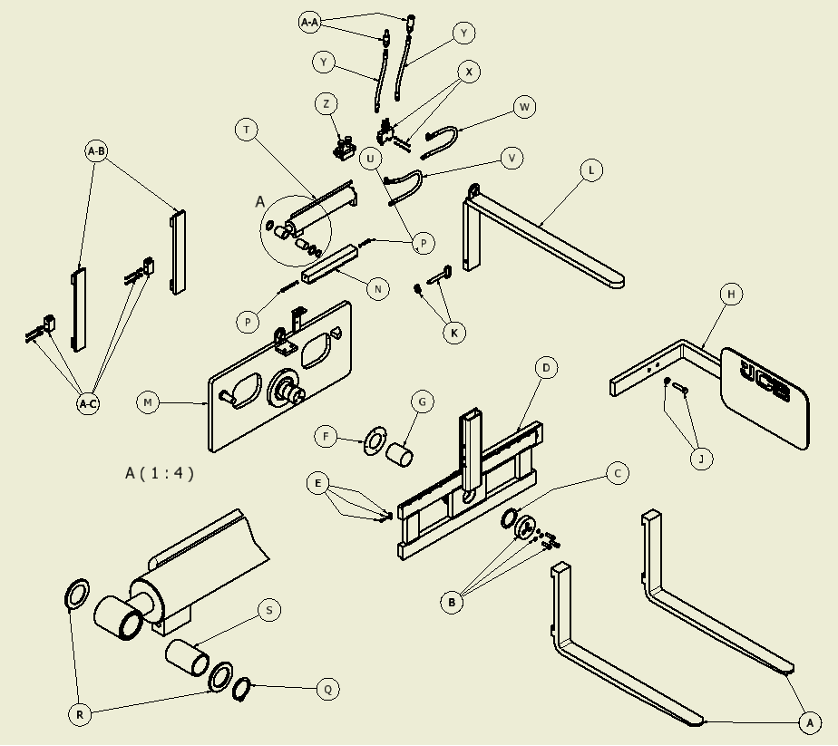

FULL ASSEMBLY

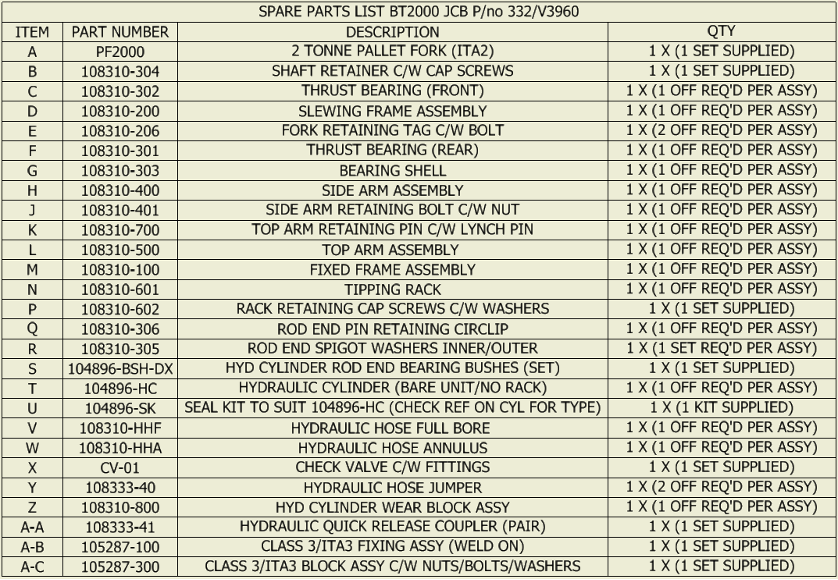

Spare Parts
